Best Practices in Blue Prism

1. Coding Standards

Use of the listed coding standards in

Naming Conventions

A list of standard names should be followed for all. It is important to use a standard set of Naming Conventions across

Where can naming conventions help in Fusion development?

• Avoiding errors due to duplicate names:

Not following naming conventions can give rise to a lot of duplicates components. These duplicate names can be eliminated if naming conventions are followed.

• Ease of modifying Fusion XMLs:

Following the standard naming conventions help in locating and modifying similar actions in

Subsequent sections explain briefly the different conventions used across

• Always use descriptive names for actions or elements.
• Blue Prism Process studio and Object studio names should provide short details of their use in their names;

Type	Element	Naming Convention	Examples
		Pro_Primary action	Pro_ReadExcelData
Process Studio	Process  Action  Decision  Choice  Calculation  Multiple calculations  Data Item  Collection  Loop  Note  End  Exception  Resume  Recover	Pro_name of the new business process  Automatically generated  Action_primary action  Dec_action?  Choice_Name of the choice  Calc_action  MCalc_action  Datatype_source for data**  Coll_source for data  Loop_collectionName  Note_name of the note  End  Exc_Type Of exception  Resume  Recover
Object Name		Obj_Type of application_application name_Primary action	Obj_Wb_Create Employee_Register Obj_Wn_Notepad_Launch
Object Studio	Block Read Write  Navigate  Code  Wait Process Page  Action  Decision Choice  Multiple calculations  Data Item  Collection  Loop  Note  Exception  Recover  Resume	Block_BlockName Read_Application Name Write_ApplicationName  Nav_Action  Code_functionName  Wait_ElementName/ ApplicationName Pro_name of the new business process Automatically generated Action_primary action  Dec_action?  Choice_NameOfChoice  MCalc_action  Datatype_source for data**  Coll_source for data  Loop_collectionName  Note_name of the note  Exc_Type of exception  Recover  Resume
Queue		Qu_UsedFor	Qu_Approved Qu_Rejected
Element		Label of the Element	FirstName

** Source for Data:

1.    Initial Value: Init.

2.    Excel : Exc

3.    Stages : Stage

4.    Element : Ele

Data Types:

1.    Password : Pwd

2.    Date: Date

3.    Date Time: DateTime

4.    Flag: Flag

5.    Number: Num

6.    Text:Txt

7.    Time: Time

8.    TimeSpa: TimeSpan

9.    Image: Img

10. Binary : Bin

 2. Queue Concept:

Almost every

• Multiple machines can work from the same

• An individual case can be marked as ‘complete’ if it has been worked satisfactorily, or marked as an ‘exception’ if it could not be completed.

• MI such as volumes, performance levels and exception details can be extracted from queue data.

A Blue Prism Process is intended to obey instructions to do a repetitive task. That instruction could be some kind of list feeding the Process with work, for example, a spreadsheet. Alternatively a The process might be designed to wait for work to appear on an ad hoc basis, for example, files appearing in a folder.
Realistically we should expect there will be problems and accept that some cases will succeed and some will not. We may also instruct BluePrism to purposely disregard certain cases. Whatever happens, we will need to record results.
If there are too many cases for one instance of BluePrism to cope with, we may want to run the same Process on multiple machines to share out the workload.

The WorkQueue feature

3. Exception Handling

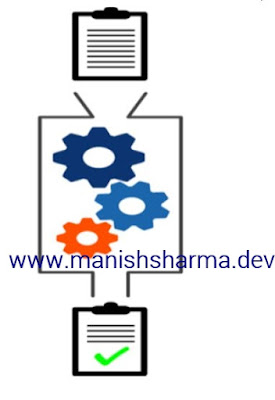

It may help to visualize exception cases by thinking of a BluePrism process simply as a machine – a machine used to do a specific job over and over again.
Without concerning ourselves how this machine works, we can see that cases are fed into one end of the machine and results come out at the other end.
And in an ideal world, this machine would be able to do all its work without encountering any difficulties – every case fed into the machine would be completed.

Unfortunately, the reality is that the machine will occasionally encounter problems and some cases will not make it through to completion.

4. Delay Concept:

We often see that sometimes whenever we run page e.g. in case of a web application the launching of the page takes some time but the workflow would have completed all its actions even before the first stage is complete. This may sometimes happen due to connectivity issues. This will fail the workflow even after all the conditions are correct.

Now the question is how to tackle this?

This may be solved with the help of the Wait Stage. The wait stage is a tool available in the object studio. Before performing any action we can include a wait stage where we can check whether the screen exists or no by giving appropriate delay. If yes then go to the next stage or else end the process in.

----------------------------------------------------------------------------------------------------------------------------
